Electrical Terminal Service

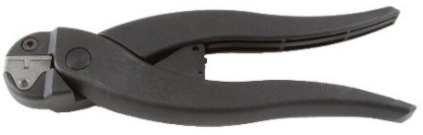

Crimps:

• 10-6 gauge insulated and non-insulated wire ferrules, with a trapezoid crimp
• US or DIN type wire ferrules, conforms to DIN 46228 Pt #1 and #4 or EN-60947-1, three crimp zones are registered in accordance with VG 95211 (military designation VG 95236 T 14 A0001)

Features:

• German precision engineered tool
• Ratcheting tool

Crimps:

• 22-12 gauge insulated and non-insulated
• DIN 46228 Pt #1 and #4

Features:

• One crimp zone crimps all sizes
• German precision engineered tool
• Rotary action head

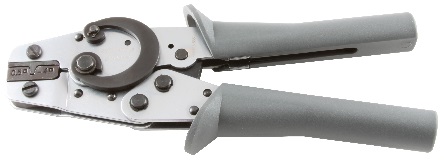

Crimps:

• 24-10 gauge insulated and non-insulated, with a rotating crimp die
• DIN 46228 Pt #1 and #4 or EN-60947-1 type wire ferrules

Features:

• Rotary action head turns 90° to allow crimp to be made from front or side
• German precision engineered tool
• Non-ratcheting tool

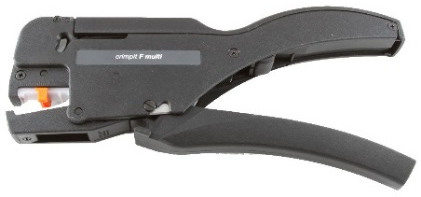

Crimps:

• 22-14 gauge
  strip ferrules

Features:

• Economical alternative to
  a ferrule crimping
  machine
• Speeds application by
  200-300% over over
  standing crimping tools
• Load strip ferrules into
  this tool for high
  volume applications

Crimps:

• 26-16 gauge
  insulated terminals
• 26-16 gauge wire
  ferrules

Features:

• Release lever
• Pressure adjustment
  lever
• Ratcheting tool

Crimps:

• 1-3/0 gauge
  insulated and non-insulated
  wire ferrules, with a
  trapezoid crimp
• 26-16 gauge wire ferrules

Features:

• Quick-release
• Extra long handle for
  greater leverage
• Ratcheting tool
