Crimp Metri-Pack

#15359996

#12085270

Weather Pack, Metri-Pack, Micro-Pack, Pack-Con, and 56-58 Series terminals often require different crimping tools. The more you know about what will be crimped, the easier it is to find a tool. The ratchet style design allows you to make easier crimps with less effort.

Use a quick single motion tool that crimps both the terminal and seal in one motion, rather than two, for higher volumes.

The standard two crimp tools crimp in two separate motions. One motion to crimp the terminal and one motion to crimp the seal

Crimping Tools

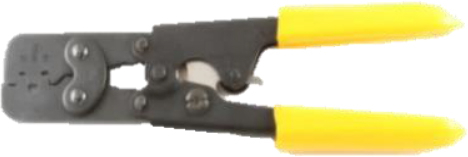

Part # PACK TOOL

Crimps Metri-Pack:

  • 150 series, sealed,22-14 gauge
  • 280 series, sealed,22-14 gauge

Crimps Weather Pack:

  • 22-14 gauge

Features:

  • Non-ratcheting tool

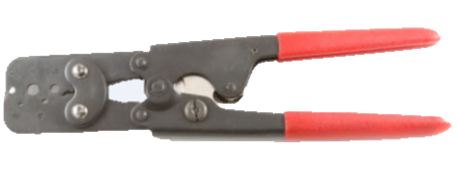

Part # 12155975

Crimps Metri-Pack::

  • 150 series, sealed,20-14 gauge
  • 280 series, sealed, 20-14 gauge

Features:

  • Ratcheting tool

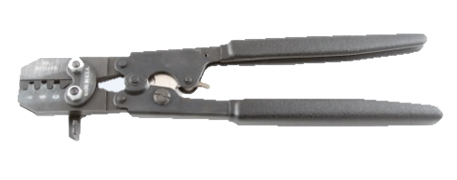

Part # 12085271

Crimps Metri-Pack:

  • 280 series, unsealed, 20-14 gauge
  • 280 ACT pull to seat series, unsealed,20-14 gauge
  • 480 series, unsealed,20-18 gauge
  • 480 and 630 pull to seat series,unsealed,20-18 gauge
  • 630 series, unsealed,20-18 gauge

Crimps Pack-Con:

  • Series II, unsealed, female, 20-14 gauge

Features:

  • Ratcheting tool

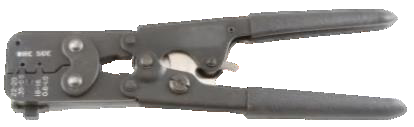

Part # 15155975

Crimps Metri-Pack:

  • 280 series, sealed, 12-10 gauge

Crimps Weather Pack:

  • 12 gauge

Also Crimps:

  • Open barrel rings,12-10 gauge

Features:

  • Ratcheting tool

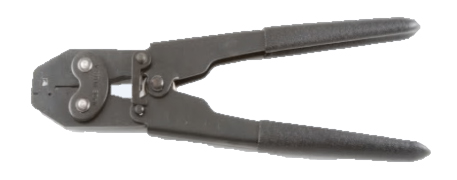

Part # 12070947

Crimps Metri-Pack:

  • 280 and 480 series,unsealed,12-10 gauge
  • 280 ACT series,unsealed, 12-10 gauge
  • 480 pull to seat series, 12-10 gauge
  • 630 series, unsealed,12-10 gauge
  • 630 pull to seat series,22-10 gauge
  • 800 series, unsealed,female, 14-10 gauge

Crimps Pack-Con:

  • Series I & III, unsealed,12-10 gauge

Features:

  • Quick single motion ratcheting tool

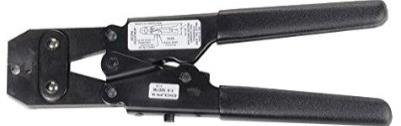

Part # 12071687

Crimps Metri-Pack:

  • 480 series, sealed, 12-10 gauge
  • 630 series, sealed,12-10 gauge

Features:

  • Standard two crimp non-ratcheting tool

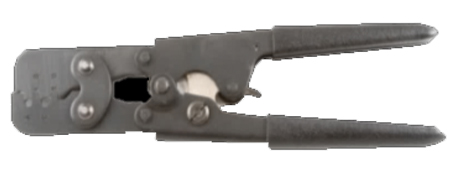

Part # 15370042

Crimps Metri-Pack:

  • 800 series, sealed 8 gauge (female only)

Features:

  • Quick single motion ratcheting tool

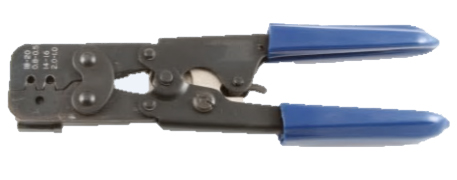

Part # 15359996

Crimps Metri-Pack:

  • GT 150 series,
    sealed 22-16
    gauge

Features:

  • Quick single motion ratcheting tool
  • ratcheting tool
Part # 12039500

Crimps Metri-Pack::

  • 150 series, unsealed,
    22-16 gauge
  • 150, 150-1, and 150-2
    pull to seat series,
    22-16 gauge

Features:

  • Quick single motion
    Ratcheting tool
Part # 12014254

Crimps Metri-Pack:

  • 280 series, sealed 20-14 gauge (must remove terminal locator on tool)

Crimps Weather Pack:

  • 20-14 gauge

Features:

  • Ratcheting tool

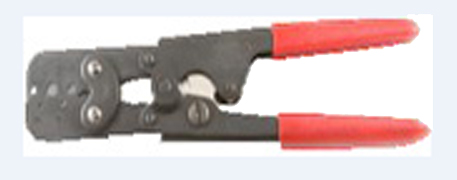

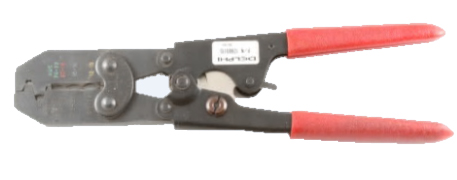

Part # 12085270

Crimps Metri-Pack:

  • 280 series, sealed, 12 gauge
  • 480 series, sealed, 18-14 gauge
  • 480 series, sealed, 16-14 gauge
  • 480 pull to seat series, unsealed, 18-14 gauge
  • 150, 480, and 630 series (crimps seals only)
  • 630 series, sealed, 18-14 gauge

Crimps Weather Pack:

  • 12 gauge

Features:

  • Ratcheting tool
Part # 12085115

Crimps Metri-Pack::

  • 280, 480, and 630
    series, unsealed,
    16-12 gauge

Crimps Packard:

  • 56, 58, and 59
    series, 12-10 gauge
  • Open barrel rings,
    14-10 gauge

Crimps Heat Shrink:

  • 22-10 gauge heat
    shrink terminals

Features:

  • Standard two crimp
  • Ratchet tool
Part # 6285847

Crimps Metri-Pack:

  • 480 series, unsealed, 16-14 gauge
  • 480 pull to seat series unsealed, 16-14 gauge
  • 630 series, unsealed 16-14 gauge
  • 630 pull to seat series, unsealed, 16-14 gauge

Crimps Pack-Con:

  • Series I & II, unsealed, female, 20-14 gauge
  • Series II, unsealed female, 12-10 gauge

Crimps Packard:

  • 56, 58, and 59 series, 20-14 gauge
  • 56, 58, and 59 series, 12-10 gauge (core wings only)
  • 56 Series, 20-10 gauge, splice clips
  • Open barrel rings, unsealed, 20-14 gauge,up to 0.032" thick
  • wedge base lamp sockets, 20-14 gauge

Features:

  • Non-ratcheting tool
Part # 15359995

Crimps Metri-Pack:

  • GT 150 series, sealed 22-16 gauge
  • GT 280 series, 22-16 gauge (must remove locator on tool)

Features:

  • Quick single motion ratcheting tool
Terminal Release Tools
Part # 12094429

Releases Metri-Pack:

  • 150, 280, and 630 series, 22-10 gauge
  • 150 GT and 280 GT series, 22-10 gauge
Part # 12094430

Releases Metri-Pack::

  • 480, 630, and 800,
    series, 20-10 gauge

Releases Weather Pack:

  • 56, 58, and 59 series,
    20-10 gauge
Part # 12094429HD

Releases Metri-Pack:

  • 150, 280, and 630 series, 22-10 gauge
  • 150 GT and 280 GT series, 22-10 gauge

Features:

  • Heavy-duty tool
Part # 12094430HD

Releases Metri-Pack::

  • 480, 630, and 800,series, 20-10 gauge, 3.5 mm center line

Releases Packard::

  • 56, 58, and 59 series, 20-10 gauge

Features:

  • Heavy-duty tool
Micro-Pack Tools
Part # 12070948

Crimps Micro-Pack:

  • 100 series unsealed,
    22-14 gauge
    (female only)

Features:

  • Quick single motion ratcheting tool
Part # 12125080

Crimps Micro-Pack::

  • 100 W series,
    22-18 gauge, 3.5 mm center line

Features:

  • Quick single motion ratcheting tool
Rennsteig Crimping Kits & Dies for Metri-Pack and Weather Pack Terminals

This German-made tool offers the most precise crimp available for production and high volume.

Kits include a die and a crimping handle. Additional dies can be purchased to fit this handle.

Dies fit any handle from the 624 series kits.

GM/Delphi recommended crimpers and dies.

Wire
Size Rennsteig
(AWG) Series Number Die Kit
22-12 Metri-Pack 280 Unsealed 624 1504 504-DIE 504-KIT
22-16 Metri-Pack 150 Sealed 624 1495 495-DIE 495-KIT
22-16 Metri-Pack 150.2 Unsealed 624 1490 490-DIE 490-KIT
22-16 Metri-Pack GT150 Sealed 624 1489 489-DIE 489-KIT
22-16 Metri-Pack 280 Sealed 624 1501 501-DIE 501-KIT
22-16 Metri-Pack GT280 Sealed 624 1486 486-DIE 486-KIT
22-18 Micro-Pack - - - - - - 624 1545 545-DIE 545-KIT
22-18 Metri-Pack GT150 Sealed 624 1488 488-DIE 488-KIT
20-16 Metri-Pack 150 Sealed 624 1527 527-DIE 527-KIT
Wire
Size Rennsteig
(AWG) Series Number Die Kit
20-16 Metri-Pack 150 Unsealed 624 1530 530-DIE 530-KIT
20-16 Metri-Pack 280 Sealed 624 1513 513-DIE 513-KIT
20-16 Metri-Pack 280 Unsealed 624 1506 506-DIE 506-KIT
20-18 Weather Pack - - - - - - 624 1528 528-DIE 528-KIT
20-18 Metri-Pack 630 Unsealed 624 1511 511-DIE 511-KIT
16-12 Weather Pack - - - - - - 624 1476 476-DIE 476-KIT
16-12 Metri-Pack 630 Unsealed 624 1510 510-DIE 510-KIT
14-10 Metri-Pack 280 Sealed 624 1498 498-DIE 498-KIT
12-10 Metri-Pack 280 Sealed 624 1492 492-DIE 492-KIT
