Metri-Pack 630 Series, Unsealed

Male tab width = 6.3 mm. 46 amps max. per circuit.

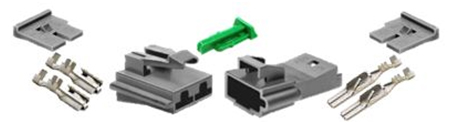

For durable, long-term connections each housing uses a wire organizer (TPA) and mating pairs of housings use housing locks (CPA), unless noted. Terminals require a proper crimping tool, listed below.

Terminals

Female

Male
Wire Size (AWG) Female Terminals Pkg. Qty.   Male Terminals Pkg. Qty.
22-20 12052222 10   ------- -----
20-18 12015869 10   12020125 10
16-14 12015870 10   12020126 10
12 12052224 10   12052826 10
10 12084590 10   12066493 10

Housings

Female



Male

   Wire Organizer
(TPA)		 Housing Lock
(CPA)
A
 B
   C
 D

#12059860
#12052834


Female



Male
No. of
Cavities		 Housings Pkg.
Qty.		 Wire Organizers
(TPA)		 Pkg.
Qty.		   Housings Pkg.
Qty.		 Wire Organizers
(TPA)		 Pkg.
Qty		   Housing Locks
(CPA)		 Pkg.
Qty
2 (A) 12129939 10 12129940 10   (C) 12129938 10 12129940 10   12052834 5
4 (B) 12015664 10 ------- -----   (D) 12052623 10 ------- -----   ------- -----
Metri-Pack 630 Series, Unsealed Tools
Part # 12094429

Releases Metri-Pack:

  • 150, 280, and 630 series, 22-10 gauge
  • 150 GT and 280 GT series, 22-10 gauge
Part # 12094429HD

Releases Metri-Pack:

  • 150, 280, and 630 series, 22-10 gauge
  • 150 GT and 280 GT series, 22-10 gauge

Features:

  • Heavy-duty tool

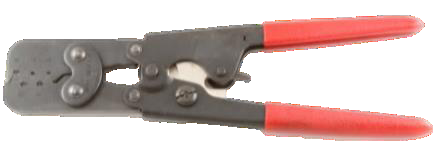

Part # 6285847

Crimps Metri-Pack:

  • 480 series, unsealed,
    16-14 gauge
  • 480 pull to seat series,
    unsealed, 16-14 gauge
  • 630 series, unsealed,
    16-14 gauge
  • 630 pull to seat series,
    unsealed, 16-14 gauge

Crimps Pack-Con::

  • Series I & II, unsealed,
    female, 20-14 gauge
  • Series II, unsealed,
    female, 12-10 gauge

Crimps Packard::

  • 56, 58, and 59 series,
    20-14 gauge
  • 56, 58, and 59 series,
    12-10 gauge (core
    wings only)
  • 56 Series, 20-10 gauge,
    splice clips
  • Open barrel rings,unsealed,
    20-14 gauge,up to
    0.032" thick
  • wedge base lamp sockets,
    20-14 gauge

Features:

  • Non-ratcheting tool
Part # 12094430

Releases Metri-Pack:

  • 480, 630, and 800, series, 20-10 gauge

Releases Weather Pack:

  • 56, 58, and 59 series, 20-10 gauge
Part # 12094430HD

Releases Metri-Pack:

  • 480, 630, and 800, series, 20-10 gauge

Releases Packard::

  • 56, 58, and 59 series, 20-10 gauge

Features:

  • Heavy-duty tool
Part # 12085271

Crimps Metri-Pack:

  • 280 series, unsealed,
    20-14 gauge
  • 280 ACT pull to seat
    series,unsealed 20-14 gauge
  • 480 series, unsealed,
    20-18 gauge
  • 480 and 630 pull to
    pull to seat series, unsealed
    20-18 gauge
  • 630 series, unsealed,
    20-18 gauge

Crimps Pack-Con::

  • Series II, unsealed, female,
    20-14 gauge

Features:

  • Ratcheting tool
Part # 12070947

Crimps Metri-Pack:

  • 280 and 480 series, unsealed, 12-10 gauge
  • 280 ACT series, unsealed, 12-10 gauge
  • 480 pull to seat series,12-10 gauge
  • 630 series, unsealed,12-10 gauge
  • 630 pull to seat series,22-10 gauge
  • 800 series, unsealed,female, 14-10 gauge

Crimps Pack-Con:

  • Series I & III, unsealed,12-10 gauge

Features:

  • Quick single motion ratcheting tool
