Metri-Pack 480 Series, Unsealed

Male tab width = 4.8 mm. 42 amps max. per circuit.

For durable, long-term connections each housing uses a wire organizer (TPA) and mating pairs of housings use housing locks (CPA), unless noted. Terminals require a proper crimping tool, listed below.

Terminals

Female

Male
Wire Size (AWG) Female Terminals Pkg. Qty.   Male Terminals Pkg. Qty.
22-20 12052219 25   ------- -----
18 12015860 25   12020119 25
16-14 12124304 25   12020120 25
12 12052221 25   12052827 25
10 12084595 25   12033820 10

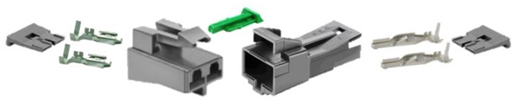

Housings

Female



Male

   Wire Organizer
(TPA)		 Housing Lock
(CPA)
A
 B
   C
 D

#12059860
#12052834


Female



Male
No. of
Cavities		 Housing Locks Pkg.
Qty.		 Wire Organizers
(TPA)		 Pkg.
Qty.		   Housing Locks Pkg.
Qty.		 Wire Organizers
(TPA)		 Pkg.
Qty		   Housing Locks
(CPA)		 Pkg.
Qty
1 (A) 12015952 10 ------- -----   (C) 12015987 10 ------- -----   ------- -----
2 (B) 12064749 10 12059860 10   (D) 12064750 10 12064751 10   12052834 5
Metri-Pack 480 Series, Unsealed Tools
Part # 12094429

Releases Metri-Pack:

  • 150, 280, and 630 series, 22-10 gauge
  • 150 GT and 280 GT series, 22-10 gauge
Part # 12094429HD

Releases Metri-Pack:

  • 150, 280, and 630 series, 22-10 gauge
  • 150 GT and 280 GT series, 22-10 gauge

Features:

  • Heavy-duty tool
Part # 12070947

Crimps Metri-Pack:

  • 280 and 480 series, unsealed, 12-10 gauge
  • 280 ACT series, unsealed, 12-10 gauge
  • 480 pull to seat series,12-10 gauge
  • 630 series, unsealed,12-10 gauge
  • 630 pull to seat series,22-10 gauge
  • 800 series, unsealed,female, 14-10 gauge

Crimps Pack-Con:

  • Series I & III, unsealed,12-10 gauge

Features:

  • Quick single motion ratcheting tool
Park # 12085270

Crimps Metri-Pack:

  • 280 series, sealed, 12 gauge
  • 480 series, sealed, 18-14 gauge
  • 480 series, unsealed, 16-14 gauge
  • 480 pull to seat series, unsealed, 18-14 gauge
  • 150, 480, and 630 series (crimps seals only)
  • 630 series, sealed, 18-14 gauge

Crimps Weather Pack:

  • 12 gauge

Features:

  • Ratcheting tool
Part # 12094430

Releases Metri-Pack:

  • 480, 630, and 800, series, 20-10 gauge

Releases Weather Pack:

  • 56, 58, and 59 series, 20-10 gauge
Part # 12094430HD

Releases Metri-Pack:

  • 480, 630, and 800, series, 20-10 gauge

Releases Packard::

  • 56, 58, and 59 series, 20-10 gauge

Features:

  • Heavy-duty tool
Part # 12085271

Crimps Metri-Pack:

  • 280 series, unsealed, 20-14 gauge
  • 280 ACT pull to seat series, unsealed 20-14 gauge
  • 480 series, unsealed, 20-18 gauge
  • 480 and 630 pull to pull to seat series, unsealed 20-18 gauge
  • 630 series, unsealed, 20-18 gauge

Crimps Pack-Con::

  • Series II, unsealed, female, 20-14 gauge

Features:

  • Ratcheting tool
Part # 6285847

Crimps Metri-Pack:

  • 480 series, unsealed, 16-14 gauge
  • 480 pull to seat series,unsealed, 16-14 gauge
  • 630 series, unsealed,16-14 gauge
  • 630 pull to seat series,unsealed, 16-14 gauge

Crimps Pack-Con::

  • Series I & II, unsealed,female, 20-14 gauge
  • Series II, unsealed,female, 12-10 gauge

Crimps Packard::

  • 56, 58, and 59 series,20-14 gauge
  • 56, 58, and 59 series,12-10 gauge (core wings only)
  • 56 Series, 20-10 gauge, splice clips
  • Open barrel rings,unsealed, 20-14 gauge,up to 0.032" thick
  • wedge base lamp sockets, 20-14 gauge

Features:

  • Non-ratcheting tool
