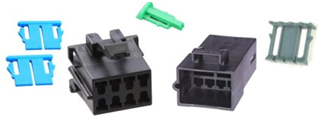

Metri-Pack 280 Series, Unsealed

Male tab width = 2.8 mm. 30 amps max. per circuit.

For durable, long-term connections each housing uses a wire organizer (TPA) and mating pairs of housings use housing locks (CPA), unless noted. Terminals require a proper crimping tool, listed below.

Terminals

Female

Male
Wire Size (AWG) Female Terminals Pkg. Qty.   Male Terminals Pkg. Qty.
22-20 12052217 25   12066271 25
18-16 12034046 25   12034047 25
16-14 12066214 25   12020116 25
14-12 12129494 25   12129498 25
12-10 12015858 25   12084586 25

Housings

Female



Male

   Wire Organizer
(TPA)
A
 B
 C
   D
 E
 F


#12064753
    Housing Lock
(CPA)

#12052834


Female



Male
No. of
Cavities		 Housings Pkg.
Qty.		 Wire Organizers
(TPA)		 Pkg.
Qty.		   Housings Pkg.
Qty.		 Wire Organizers
(TPA)		 Pkg.
Qty		   Housing Locks
(CPA)		 Pkg.
Qty
3 (A) 12020397 10 ------- -----   (D) 12020398 10 ------- ----   12052834 5
6 (B) 12064752* 10 12064753 10   (E) 12064754* 10 12064755 10   12052834 5
8 (C) 12064998* 10 12064999 10   (F) 12066195 10 12065141 10   12052834 5
Metri-Pack 280 Series, Unsealed Tools
Part # 12094429

Releases Metri-Pack:

  • 150, 280, and 630 series, 22-10 gauge
  • 150 GT and 280 GT series, 22-10 gauge
Part # 12094429HD

Releases Metri-Pack:

  • 150, 280, and 630 series, 22-10 gauge
  • 150 GT and 280 GT series, 22-10 gauge

Features:

  • Heavy-duty tool
Part # 12070947

Crimps Metri-Pack:

  • 280 and 480 series, unsealed, 12-10 gauge
  • 280 ACT series, unsealed, 12-10 gauge
  • 480 pull to seat series,12-10 gauge
  • 630 series, unsealed,12-10 gauge
  • 630 pull to seat series,22-10 gauge
  • 800 series, unsealed,female, 14-10 gauge

Crimps Pack-Con:

  • Series I & III, unsealed,12-10 gauge

Features:

  • Quick single motion ratcheting tool
Park # PACK TOOL

Crimps Metri-Pack:

  • 150 series, sealed 22-14 gauge
  • 280 series, sealed, 22-14 gauge

Crimps Weather Pack:

  • 22-14 gauge

Features:

  • Non-ratcheting tool
Part # 12094430

Releases Metri-Pack:

  • 480, 630, and 800, series, 20-10 gauge

Releases Weather Pack:

  • 56, 58, and 59 series, 20-10 gauge
Part # 12094430HD

Releases Metri-Pack:

  • 480, 630, and 800, series, 20-10 gauge

Releases Packard::

  • 56, 58, and 59 series, 20-10 gauge

Features:

  • Heavy-duty tool
Part # 12085271

Crimps Metri-Pack:

  • 280 series, unsealed,
    20-14 gauge
  • 280 ACT pull to seat series,
    unsealed 20-14 gauge
  • 480 series, unsealed, 20-18 gauge
  • 480 and 630 pull to pull to seat series,
    unsealed 20-18 gauge
  • 630 series, unsealed, 20-18 gauge

Crimps Pack-Con::

  • Series II, unsealed, female,
    20-14 gauge

Features:

  • Ratcheting tool
Part # 12085115

Crimps Metri-Pack:

  • 280, 480, and 630 series,
    unsealed, 16-12 gauge

Crimps Packard::

  • 56, 58, and 59 series, 12-10 gauge
  • Open barrel rings, 14-10 gauge,

Crimps Heat Shrink::

  • 22-10 gauge heat shrink terminals

Features:

  • Standard two crimp
  • Ratcheting tool
