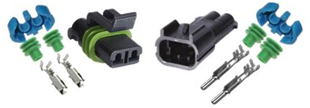

Metri-Pack 280 Series, Sealed

Male tab width = 2.8 mm. 30 amps max. per circuit.

For durable, long-term connections each housing uses a wire organizer (TPA) and mating pairs of housings use housing locks (CPA), unless noted. Terminals require seals and a proper crimping tool, listed below.

Terminals and Seals

Female

Male

Seal

Cavity Plug
Wire Size (AWG) Female Terminals Pkg. Qty. Male Terminals Pkg. Qty. Female & Male
Terminal Seals		 Color Pkg. Qty.
22 - - - - - - 12124977 - - 15324983/12015899 Dark Red 50
22-20 12084201 25 12124977 25 15324985/12089679 Purple 50
18-16 12077411 25 12048159 25 15324982/12015323 Green 50
14-12 12129493 25 12129497 25 15324980 Gray 50
12 12077413 10 12048254 10 15324981 Blue 50
Cavity Plugs to Fill Unused Circuits, Green (Pkg. of 25) Part #12010300

Housings

Female



Male

   Wire Organizer
(TPA)
A
 B
 C
   F
 G
 H


#12052634
D
   E
   I
   J
   Housing Lock
(CPA)

#12020833


Female



Male
No. of
Cavities		 Housings Pkg.
Qty.		 Wire Organizers
(TPA)		 Pkg.
Qty.		   Housings Pkg.
Qty.		 Wire Organizers
(TPA)		 Pkg.
Qty		 Housing Locks
(CPA)		 Pkg.
Qty
1 (A)12065172 5 12065249 10   (F) 12065171 5 12065249 10 12052834 5
2 (B)15300027 5 15300014 10   (G) 15300002 5 15300014 10 ------- -----
3 (C)12040977 5 12034145 5   (H) 15300003 5 15300015 5 12020833 5
4 (D) 12129565 5 15300016 5   ( I ) 12129600 5 15324063 5 12020833 5
5 (E) 12084891 5 15324857 5   ( J )12186400 5 12084673 5 12020833 5
Metri-Pack 280 Series, Sealed Tools
Part # 12094429

Releases Metri-Pack:

  • 150, 280, and 630 series, 22-10 gauge
  • 150 GT and 280 GT series, 22-10 gauge
Part # 12094429HD

Releases Metri-Pack:

  • 150, 280, and 630 series, 22-10 gauge
  • 150 GT and 280 GT series, 22-10 gauge

Features:

  • Heavy-duty tool
Part # 12155975

Crimps Metri-Pack:

  • 150 series, sealed, 20-14 gauge
  • 280 series, sealed 20-14 gauge

Features:

  • Ratcheting tool
Part # 15155975

Crimps Metri-Pack:

  • 280 series, sealed, 12-10 gauge

Crimps Weather Pack:

  • 12 gauge Also Crimps
  • Open barrel rings, 12-10 gauge

Features:

  • Ratcheting tool
Park # PACK TOOL

Crimps Metri-Pack:

  • 150 series, sealed 22-14 gauge
  • 280 series, sealed, 22-14 gauge

Crimps Weather Pack:

  • 22-14 gauge

Features:

  • Non-ratcheting tool
Part # 12094430

Releases Metri-Pack:

  • 480, 630, and 800, series, 20-10 gauge

Releases Weather Pack:

  • 56, 58, and 59 series, 20-10 gauge
Part # 12094430HD

Releases Metri-Pack:

  • 480, 630, and 800, series, 20-10 gauge

Releases Packard::

  • 56, 58, and 59 series, 20-10 gauge

Features:

  • Heavy-duty tool
Part # 12014254

Crimps Metri-Pack:

  • 280 series, sealed, 20-14
    gauge (must remove terminal locator
    on tool)

Crimps Weather Pack::

  • 20-14 gauge

Features:

  • Ratcheting tool
Part # 12085270

Crimps Metri-Pack:

  • 280 series, sealed, 12 gauge
  • 480 series, sealed, 18-14 gauge
  • 480 series, unsealed, 16-14 gauge
  • 480 pull to seat series, unsealed, 18-14 gauge
  • 150, 480, and 630 series (crimps seals only)
  • 630 series, sealed, 18-14 gauge

Crimps Weather Pack::

  • 12 gauge

Features:

  • Ratcheting tool
