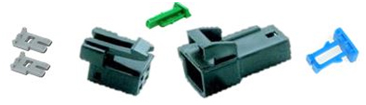

Metri-Pack 150 Series, Unsealed

Male tab width = 1.5 mm. 14 amps max. per circuit.

For durable, long-term connections each housing uses a wire organizer (TPA) and mating pairs of housings use housing locks (CPA), unless noted. Terminals require a proper crimping tool, listed below.

Terminals

Female

Male
Wire Size (AWG) Female Terminals Pkg. Qty. Male Terminals Pkg. Qty.
22-20 12064971 25 12059894 25
18-16 12047767 25 12047581 25

Housings

Female



Male

   Wire Organizer
(TPA)
A
 B
 C
 D
   L
 M
 N
 O


#12047665
E
 F
 G
 H
   P
 Q
 R
 S
   Housing Lock
(CPA)

#12052834
I
 J
 K
     T
 U
 V



Female



Male


No. of
Cavities		 Housings Pkg.
Qty.		 Wire Organizers
(TPA)		 Pkg.
Qty.		   Housings Pkg.
Qty.		 Wire Organizers
(TPA)		 Pkg.
Qty.		   Housing Locks
(CPA)		 Pkg.
Qty
1 (A) 12047682 25 ------- -----   (L) 12047683 25 ------- -----   ------- -----
2 (B) 12047662 10 12047664 10   (M) 12047663 25 12047665 10   ------- -----
2 (C) 12052832 10 12047664 10   (N) 12052833 10 12047665 10   12052834 5
3 (D) 12064758 10 12047783 10   (O) 12064759 10 12047784 10   12052834 5
3 (E) 12047781 10 12047783 10   (P) 12047782 10 12047784 10   ------- -----
4 (F) 12064760 10 12047664* 10   (Q) 12064761 10 12047787 10   12052834 5
4 (G) 12047785 10 12047664* 10   (R) 12047786 10 12047787 10   ------- -----
6 (H) 12064762 10 12064764* 10   (S) 12064763 10 12064765 10   12052834 5
8 (I) 12047886 10 12045689* 20   (T) 12045688 10 12045690 10   ------- -----
8 (J) 12064766 10 12064768* 20   (U) 12064767 10 12045690 10   12052834 5
10 (K) 12064769 5 12064771* 10   (V) 12064770 5 12064772 5   12052834 5
*Uses two wire organizers (TPA)
Metri-Pack 150 Series, Unsealed Tools
Part # 12094429

Releases Metri-Pack:

  • 150, 280, and 630 series, 22-10 gauge
  • 150 GT and 280 GT series, 22-10 gauge
Part # 12094429HD

Releases Metri-Pack:

  • 150, 280, and 630 series, 22-10 gauge
  • 150 GT and 280 GT series, 22-10 gauge

Features:

  • Heavy-duty tool
Park # PACK TOOL

Crimps Metri-Pack:

  • 150 series, sealed 22-14 gauge
  • 280 series, sealed, 22-14 gauge

Crimps Weather Pack:

  • 22-14 gauge

Features:

  • Non-ratcheting tool
Part # 12094430

Releases Metri-Pack:

  • 480, 630, and 800, series, 20-10 gauge

Releases Weather Pack:

  • 56, 58, and 59 series, 20-10 gauge
Part # 12094430HD

Releases Metri-Pack:

  • 480, 630, and 800, series, 20-10 gauge

Releases Packard::

  • 56, 58, and 59 series, 20-10 gauge

Features:

  • Heavy-duty tool
Part # 12039500

Crimps Metri-Pack:

  • 150 series, unsealed,22-16 gauge
  • 150, 150-1,and 150-2 pull to seat series,22-16 gauge

Features:

  • Quick single motion ratcheting tool
