Metri-Pack 150 Series, Sealed

Male tab width = 1.5 mm. 14 amps max. per circuit.

For durable, long-term connections each housing uses a wire organizer (TPA) and mating pairs of housings use housing locks (CPA), unless noted. Terminals require seals and a proper crimping tool, listed below.

Terminals and Seals

Female

Male

Seal

Cavity Plug
Wire Size (AWG) Female Terminals Pkg. Qty. Male Terminals Pkg. Qty. Female & Male
Terminal Seals		 Color Pkg. Qty.
22 - - - - - - - - - - - - - - - - - 15324974/12048087 Blue 50
22-20 12084200 25 12077628 25 15324976 White 50
18-16 12048074 25 12045773 25 15324973/12048086 Dark Red 100
Cavity Plugs to Fill Unused Circuits, Dark Red (Pkg. of 25) Part #12059168

Housings

Female



Male

   Wire Organizer
(TPA)
A
 B
 C
   G
 H
 I


#12052634
D
 E
 F
   J
 K
 L
   Housing Lock
(CPA)

#12020833
No. of
Cavities		 Female
Housings		 Pkg.
Qty.		 Male
Housings		 Pkg.
Qty.		 Wire Organizers
(TPA)		 Pkg.
Qty		 Housing Locks
(CPA)		 Pkg.
Qty
2 (A) 12052641 5 (G) 12162000 5 12052634 10 ------- -----
3 (B) 12110293 5 (H) 12129615 5 12052845 10 12020833 5
4 (C) 12162144 5 ( I ) 12162102 5 12047948 10 12020833 5
6 (D) 12052848 5 (J) 12124107 5 12052850 10 12020833 5
8 (E) 12047937 5 (K) 12047931* 5 12066304 10 12020833 5
10 (F) 12065425 5 (L) 12045808 5 12124264 10 12020833 5

*Use wire organizer (TPA) #12047936.

Metri-Pack 150 Series, Sealed Tools

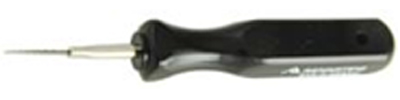

Part # 12094429

Releases Metri-Pack:

  • 150, 280, and 630 series, 22-10 gauge
  • 150 GT and 280 GT series, 22-10 gauge
Part # 12094429HD

Releases Metri-Pack:

  • 150, 280, and 630 series,
    22-10 gauge
  • 150 GT and 280 GT series,
    22-10 gauge

Features:

  • Heavy-duty tool

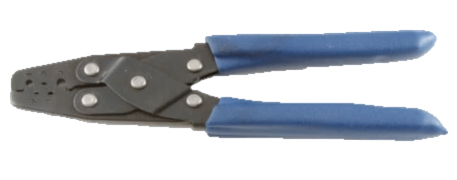

Park # PACK TOOL

Crimps Metri-Pack:

  • 150 series, sealed 22-14 gauge
  • 280 series, sealed, 22-14 gauge

Crimps Weather Pack:

  • 22-14 gauge

Features:

  • Non-ratcheting tool
Part # 12094430

Releases Metri-Pack:

  • 480, 630, and 800, series, 20-10 gauge

Releases Weather Pack:

  • 56, 58, and 59 series, 20-10 gauge
Part # 12094430HD

Releases Metri-Pack:

  • 480, 630, and 800, series, 20-10 gauge

Releases Packard::

  • 56, 58, and 59 series, 20-10 gauge

Features:

  • Heavy-duty tool

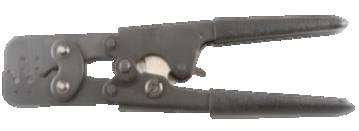

Part # 12155975

Crimps Metri-Pack:

  • 150 series, sealed, 20-14 gauge
  • 280 series, sealed 20-14 gauge

Features:

  • Ratcheting tool
