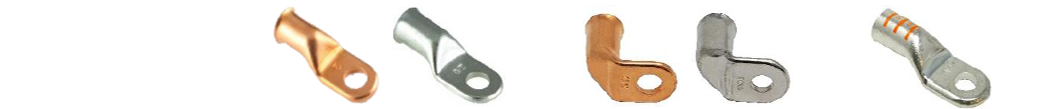

Copper Lugs
The one-piece tongue of these copper lugs uniquely provides seamless transfer of electricity, a far superior product to the "sandwiched" tongue lugs commonly found in the market. Copper lugs are clearly marked for wire size and offer a flared barrel to ease insertion of finely stranded wire and welding cable. UL listed and CSA certified.
Corrosion resistant lugs have tin plating to stand up to harsh environments.
Heavy-duty copper lugs have 80% greater wall thicknesses and tin plating for corrosion resistance, these copper lugs will stand the test of time.

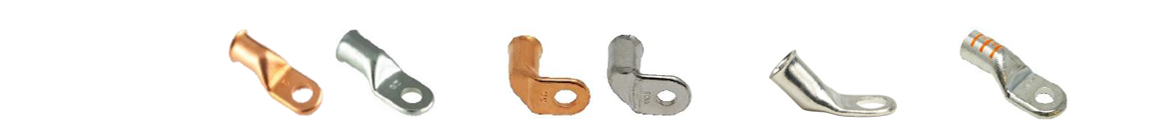

Straight |
90° Angle |
45° Angle |
Straight Heavy-Duty |
||||||||||||||||
| Wire Size(AWG) | For Stud Size | Length | Standard | Corrosion Resistant |
Pkg. Qty. |
Standard | Pkg. Qty. |
Corrosion Resistant |
Pkg. Qty. |
Standard | Pkg. Qty. |
Corrosion Resistant |
Pkg. Qty. |
Length | Standard | Pkg. Qty. |
|||
| 8 | #10 | 1.31" | CL8-10 | CL8-10T | 10 | CL8-10-90 | 10 | CL8-10T-90 | 10 | CL8-10-45 | 10 | CL8-10T-45 | 10 | 1.22" | HL-8-10 | 10 | |||
| 8 | 1/4" | 1.17" | CL8-14 | CL8-14T | 10 | CL8-14-90 | 10 | CL8-14T-90 | 10 | CL8-14-45 | 10 | CL8-14T-45 | 10 | 1.22" | HL-8-14 | 10 | |||
| 8 | 5/16" | 1.31" | CL8-56 | CL8-56T | 10 | CL8-56-90 | 10 | CL8-56T-90 | 10 | CL8-56-45 | 10 | CL8-56T-45 | 10 | 1.38" | HL-8-56 | 10 | |||
| 8 | 3/8" | 1.31" | CL8-38 | CL8-38T | 10 | CL8-38-90 | 10 | CL8-38T-90 | 10 | CL8-38-45 | 10 | CL8-38T-45 | 10 | 1.38" | HL-8-38 | 10 | |||
| 8 | 1/2" | 1.31" | CL8-12 | CL8-12T | 10 | CL8-12-90 | 10 | CL8-12T-90 | 10 | CL8-12-45 | 10 | CL8-12T-45 | 10 | 1.54" | HL-8-12 | 10 | |||
| 6 | #10 | 1.27" | CL6-10 | CL6-10T | 10 | CL6-10-90 | 10 | CL6-10T-90 | 5 | CL6-10-45 | 10 | CL6-10T-45 | 5 | 1.26" | HL-6-10 | 10 | |||
| 6 | 1/4" | 1.27" | CL6-14 | CL6-14T | 10 | CL6-14-90 | 10 | CL6-14T-90 | 5 | CL6-14-45 | 10 | CL6-14T-45 | 5 | 1.42" | HL-6-56 | 10 | |||
| 6 | 3/8" | 1.41" | CL6-38 | CL6-38T | 10 | CL6-38-90 | 10 | CL6-38T-90 | 5 | CL6-38-45 | 10 | CL6-38T-45 | 5 | 1.42" | HL-6-38 | 10 | |||
| 6 | 1/2" | 1.55" | CL6-12 | CL6-12T | 10 | CL6-12-90 | 10 | CL6-12T-90 | 5 | CL6-12-45 | 10 | CL6-12T-45 | 5 | 1.54" | HL-6-12 | 10 | |||
| 4 | #10 | 1.5" | CL4-10 | CL4-10T | 10 | CL4-10-90 | 5 | CL4-10T-90 | 5 | CL4-10-45 | 5 | CL4-10T-45 | 5 | 1.50" | HL-4-10 | 10 | |||
| 4 | 1/4" | 1.5" | CL4-14 | CL4-14T | 10 | CL4-14-90 | 5 | CL4-14T-90 | 5 | CL4-14-45 | 5 | CL4-14T-45 | 5 | 1.50" | HL-4-14 | 10 | |||
| 4 | 5/16" | 1.5" | CL4-56 | CL4-56T | 10 | CL4-56-90 | 5 | CL4-56T-90 | 5 | CL4-56-45 | 5 | CL4-56T-45 | 5 | 1.50" | HL-4-56 | 10 | |||
| 4 | 3/8" | 1.53" | CL4-38 | CL4-38T | 10 | CL4-38-90 | 5 | CL4-38T-90 | 5 | CL4-38-45 | 5 | CL4-38T-45 | 5 | 1.50" | HL-4-38 | 10 | |||
| 4 | 1/2" | 1.68" | CL4-12 | CL4-12T | 10 | CL4-12-90 | 5 | CL4-12T-90 | 5 | CL4-12-45 | 5 | CL4-12T-45 | 5 | 1.63" | HL-4-12 | 10 | |||
| 4 | 1/4" | 1.62" | CL2-14 | CL2-14T | 10 | CL2-14-90 | 5 | CL2-14T-90 | 5 | CL2-14-45 | 5 | CL2-14T-45 | 5 | 1.85" | HL-2-14 | 5 | |||
| 2 | #10 | 1.62" | CL2-10 | CL2-10T | 10 | - - - - - - | - - | - - - - - - | - - | - - - - - - | - - | - - - - - - | - - | - - - | - - - - - - | - - | |||
| 2 | 5/16" | 1.62" | CL2-56 | CL2-56T | 10 | CL2-56-90 | 5 | CL2-56T-90 | 5 | CL2-56-45 | 5 | CL2-56T-45 | 5 | 1.85" | HL-2-56 | 5 | |||
| 2 | 3/8" | 1.62" | CL2-38 | CL2-38T | 10 | CL2-38-90 | 5 | CL2-38T-90 | 5 | CL2-38-45 | 5 | CL2-38T-45 | 5 | 2.01" | HL-2-38 | 5 | |||
| 2 | 1/2" | 1.75" | CL2-12 | CL2-12T | 10 | CL2-12-90 | 5 | CL2-12T-90 | 5 | CL2-12-45 | 5 | CL2-12T-45 | 5 | 2.21" | HL-2-12 | 5 | |||
| 2 | 1/4" | 1.72" | CL1-14 | CL1-14T | 10 | CL1-14-90 | 5 | CL1-14T-90 | 5 | CL1-14-45 | 5 | CL1-14T-45 | 5 | 1.85" | HL-1-14 | 5 | |||
| 1 | 5/16" | 1.72" | CL1-56 | CL1-56T | 10 | CL1-56-90 | 5 | CL1-56T-90 | 5 | CL1-56-45 | 5 | CL1-56T-45 | 5 | 1.85" | HL-1-56 | 5 | |||
| 1 | 3/8" | 1.72" | CL1-38 | CL1-38T | 10 | CL1-38-90 | 5 | CL1-38T-90 | 5 | CL1-38-45 | 5 | CL1-38T-45 | 5 | 2.01" | HL-1-38 | 5 | |||
| 1 | 1/2" | 1.83" | CL1-12 | CL1-12T | 10 | CL1-12-90 | 5 | CL1-12T-90 | 5 | CL1-12-45 | 5 | CL1-12T-45 | 5 | 2.21" | HL-1-12 | 5 | |||
| 1/0 | 1/4" | 1.83" | CL1/0-14 | CL1/0-14T | 10 | CL1/0-14-90 | 5 | CL1/0-14T-90 | 5 | CL1/0-14-45 | 5 | CL1/0-14T-45 | 5 | 2.04" | HL-1/0-14 | 5 | |||
| 1/0 | 5/16" | 1.83" | CL1/0-56 | CL1/0-56T | 10 | CL1/0-56-90 | 5 | CL1/0-56T-90 | 5 | CL1/0-56-45 | 5 | CL1/0-56T-45 | 5 | 2.04" | HL-1/0-56 | 5 | |||
| 1/0 | 3/8" | 1.83" | CL1/0-38 | CL1/0-38T | 10 | CL1/0-38-90 | 5 | CL1/0-38T-90 | 5 | CL1/0-38-45 | 5 | CL1/0-38T-45 | 5 | 2.04" | HL-1/0-38 | 5 | |||
| 1/0 | 1/2" | 1.9" | CL1/0-12 | CL1/0-12T | 10 | CL1/0-12-90 | 5 | CL1/0-12T-90 | 5 | CL1/0-12-45 | 5 | CL1/0-12T-45 | 5 | 2.04" | HL-1/0-12 | 5 | |||
| 2/0 | 1/4" | 2.06" | CL2/0-14 | CL2/0-14T | 10 | CL2/0-14-90 | 5 | CL2/0-14T-90 | 5 | CL2/0-14-45 | 5 | CL2/0-14T-45 | 5 | 2.40" | HL-2/0-14 | 5 | |||
| 2/0 | 5/16" | 2.06" | CL2/0-56 | CL2/0-56T | 10 | CL2/0-56-90 | 5 | CL2/0-56T-90 | 5 | CL2/0-56-45 | 5 | CL2/0-56T-45 | 5 | 2.40" | HL-2/0-56 | 5 | |||
| 2/0 | 3/8" | 2.06" | CL2/0-38 | CL2/0-38T | 5 | CL2/0-38-90 | 5 | CL2/0-38T-90 | 5 | CL2/0-38-45 | 5 | CL2/0-38T-45 | 5 | 2.40" | HL-2/0-38 | 5 | |||
| 2/0 | 1/2" | 2.06" | CL2/0-12 | CL2/0-12T | 5 | CL2/0-12-90 | 5 | CL2/0-12T-90 | 5 | CL2/0-12-45 | 5 | CL2/0-12T-45 | 5 | 2.40" | HL-2/0-12 | 5 | |||
| 3/0 | 1/4" | 2.16" | CL3/0-14 | CL3/0-14T | 5 | CL3/0-14-90 | 5 | CL3/0-14T-90 | 5 | CL3/0-14-45 | 5 | CL3/0-14T-45 | 5 | 2.46" | HL-3/0-14 | 5 | |||
| 3/0 | 5/16" | 2.16" | CL3/0-56 | CL3/0-56T | 5 | CL3/0-56-90 | 5 | CL3/0-56T-90 | 5 | CL3/0-56-45 | 5 | CL3/0-56T-45 | 5 | 2.46" | HL-3/0-56 | 5 | |||
| 3/0 | 3/8" | 2.16" | CL3/0-38 | CL3/0-38T | 5 | CL3/0-38-90 | 5 | CL3/0-38T-90 | 5 | CL3/0-38-45 | 5 | CL3/0-38T-45 | 5 | 2.46" | HL-3/0-38 | 5 | |||
| 3/0 | 1/2" | 2.16" | CL3/0-12 | CL3/0-12T | 5 | CL3/0-12-90 | 5 | CL3/0-12T-90 | 5 | CL3/0-12-45 | 5 | CL3/0-12T-45 | 5 | 2.46" | HL-3/0-12 | 5 | |||
| 4/0 | 1/4" | 2.39" | CL4/0-14 | CL4/0-14T | 5 | CL4/0-14-90 | 5 | CL4/0-14T-90 | 5 | CL4/0-14-45 | 5 | CL4/0-14T-45 | 5 | 2.50" | HL-4/0-14 | 1 | |||
| 4/0 | 5/16" | 2.39" | CL4/0-56 | CL4/0-56T | 5 | CL4/0-56-90 | 5 | CL4/0-56T-90 | 5 | CL4/0-56-45 | 5 | CL4/0-56T-45 | 5 | 2.50" | HL-4/0-56 | 1 | |||
| 4/0 | 3/8" | 2.39" | CL4/0-38 | CL4/0-38T | 5 | CL4/0-38-90 | 5 | CL4/0-38T-90 | 5 | CL4/0-38-45 | 5 | CL4/0-38T-45 | 5 | 2.50" | HL-4/0-38 | 1 | |||
| 4/0 | 1/2" | 2.39" | CL4/0-12 | CL4/0-12T | 5 | CL4/0-12-90 | 5 | CL4/0-12T-90 | 5 | CL4/0-12-45 | 5 | CL4/0-12T-45 | 5 | 2.50" | HL-4/0-12 | 1 | |||
Covers for Copper Lugs and Battery Terminals
A
B
C
D
E
F
Flexible vinyl covers protect copper lugs and battery terminals from short circuiting and contaminants. Color coded for easy identification of positive and negative terminals. Max temperature 194°F. Sold individually.
| Wire | ||
| Size | ||
| (AWG) | Black | Red |
| (A)Copper Lug Covers | ||
| 8-2 | CL8-2B-COV | CL8-2R-COV |
| 6-1 | CL6-4B-COV | CL6-4R-COV |
| 2-1/0 | CL2-1B-COV | CL2-1R-COV |
| 2/0 | CL2/0B-COV | CL2/0R-COV |
| 3/0-4/0 | CL3/0-4/0-B-COV | CL3/0-4/0-R-COV |
| Wire | ||
| Size | ||
| (AWG) | Black | Red |
| (B)Flag Battery Terminal Covers | ||
| 4/0 | BTCFB-COV | BTCFR-COV |
| (C)Copper Battery Terminal Covers | ||
| 8-6 | BT-86B-COV | BT-86R-COV |
| 4-1 | BT-41B-COV | BT-41R-COV |
| 1/0 | BT-1/0B-COV | BT-1/0R-COV |
| 2/0 | BT-2/0B-COV | BT-2/0R-COV |
| 3/0-4/0 | BT-4/0B-COV | BT-4/0R-COV |
| Wire | ||
| Size | ||
| (AWG) | Black | Red |
| (D)Elbow Battery Terminal Covers | ||
| 3/0 Left | BTCFB-L-COV | BTCFR-L-COV |
| 3/0 Right | BTCFB-R-COV | BTCFR-R-COV |
| (E)Military Battery Terminal Covers | ||
| 8-4/0 | BTM-OVALB-COV | BTM-OVALR-COV |
| (F)Marine Battery Terminal Covers | ||
| 8-4/0 | WNBTB-COV | WNBTR-COV |
